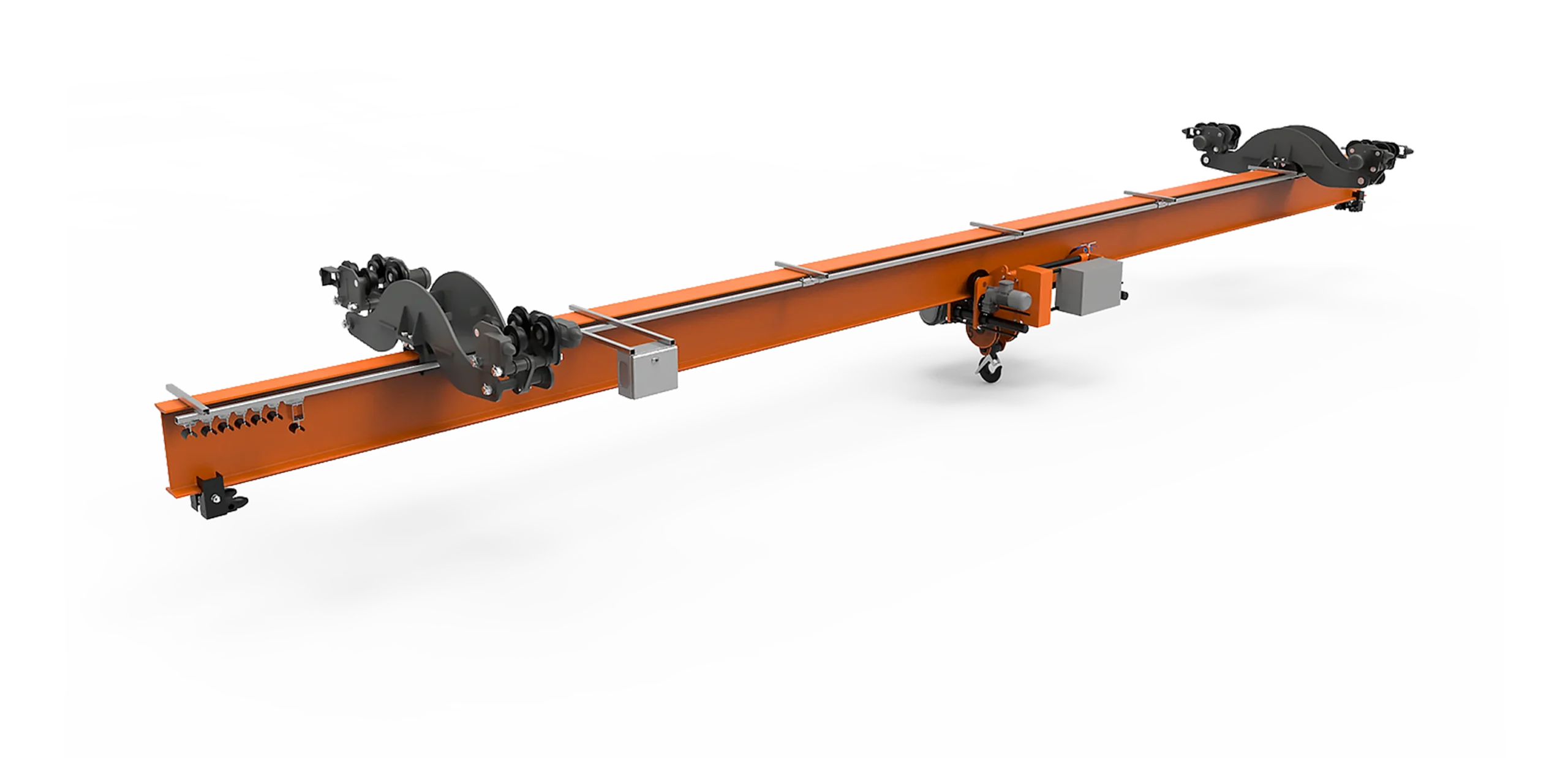

Single girder suspended crane

Single girder suspended crane from OZPTU LLC are used in warehouses, production facilities and are ideal for spaces with limited space. Additional supporting columns with a crane rail are not required, as the crane rail (double girder ) is attached directly to the ceiling of the room.

Suspended beam cranes from 1 to 20 tons are manufactured according to TU U 29.2-21674530-017:2016 ” Suspended beam cranes. Specifications”

Technical characteristics of single girder suspended crane:

Features	Specifications
Carrying capacity	From 1 to 20 tons
Lift height	Up to 32 m
Width	Up to 34 m
Crane movement speed	0-10-40 m/min
Speed of hoist	0-10-20 m/min
Lifting speed	0-4-8 m/min
Crane bridge type	Profile box section
Rope	With polyurethane rod
Electric motor control system	Frequency regulation on all mechanisms
Temperature mode	Standard temperature -20…+40°C
Color	At the customer’s choice
Hook	the DIN 15401 standard
Type of lifting mechanism	Cable or chain hoist
Mode of operation	A1 – A6
Management options	Radio control, suspended remote control from the floor
Built-in intelligent functions	Remote crane control, parameter recorder, weight controller
Location	Indoors, outdoors

LLC “OZPTU” also manufactures explosion-proof cranes, which are designed and manufactured taking into account safety requirements related to working with explosive materials or in potentially dangerous areas.

The scope of delivery of the crane beam of "OZPTU" LLC includes:

electric hoist produced by “OZPTU” LLC;
main girder ( crane bridge ) and end girders;
motor- reducers for the movement of the crane LLC “OZPTU” ;
motor-reducer for the movement of the hoist ” BAUER ” Germany;
electrical equipment ” Schneider Electric » France;
power supply of the hoist (cargo cart) on a Festoon- type rigid profile with a flat cable TKD Germany ;
load capacity limiter (weight controller) manufactured by OZPTU LLC ;
frequency converters ” Danfoss ” Denmark or at the customer’s choice;
control of the crane at the customer’s choice: radio control , suspended remote control from the floor;
two-position limit switch movement of the hoist and crane, adjustable limit switch lifting mechanism, light and sound equipment

Thanks to the use of electrical equipment from such well-known manufacturers as Schneider Electric and “Danfoss”, we can guarantee not only safety, but also high productivity, which greatly facilitates the work of our customers.

Thanks to quality control at every stage of production, we have achieved high productivity and reliability from our equipment, which is confirmed by positive feedback from our customers.

The products of “OZPTU” LLC meet the requirements of DNAOP 0.00-1.32-01 “Rules for arranging electrical installations. Electrical equipment of special installations”, DSTU EN 60204-1:2019 Safety of machines. Electrical equipment of machines. Part 1. General requirements, DSTU EN ISO 12100:2016 Machine safety. General design principles. Risk assessment and risk reduction, DSTU EN 60204-32:2018 Machine safety. Electrical equipment of machines. Part 32. Requirements for lifting machines, DSTU EN 15011:2018 Lifting cranes. Bridge and gantry cranes . And also EU standards: EN 15011:2020, EN 60204-32:2008, EN 55011:2016/ A 11:2020 related that CE Directive ( s ): 2006/42/ EC ( Machinery Directive (2014/30/EC) ( Electromagnetic Compatibility ). Our products meet CE and EAC standards.
